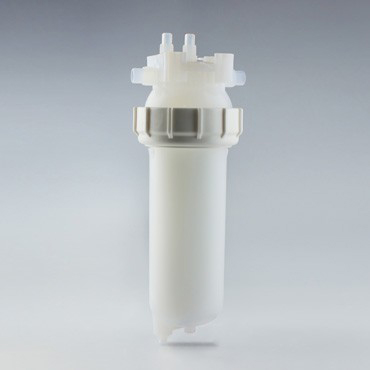

HCPA Filter Housing Series
Made of High-Purity Resin

HCPFA Filter Housing is composed of high purity PFA material. Specially designed for the chemical filtration in semiconductor industry and FPD industry,the low metal ion extractable in the PFA material guarantees filter purity thus avoiding contaminants in the solution.

Great Chemical Compatibility

Low Extractable

  • No chemicals or colorants are released during the filtration process thus limiting iron extraction.

High Temperature Resistance

  • Specification
  • Drawing
  • Biological Satety

Operating Conditions


Max. Operating Temperature100°C
Max. Differential Pressure0.75MPa @25°C(Static)
0.30MPa @25°C(Static)



Housing BowlPFA
Housing HeadPFA
Locking RingPVDF
ConnectorPFA
O-ringEPDM / FFKM
PlugPFA

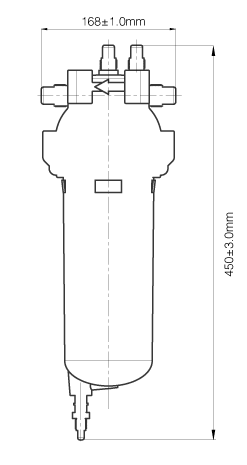

Drawing


OrderingInformation


InIet / OutletFilter ConnectorDrain /Vent
HCPA3/4" CFL222 connector1/2" CFL
1/4" CFL
