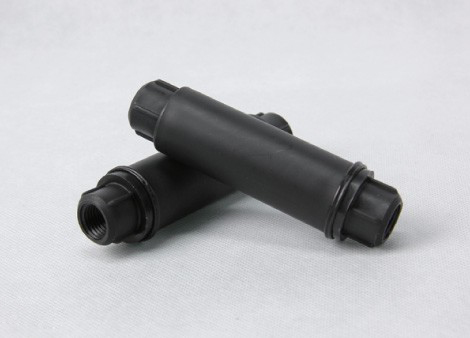

Inline Gas Filter
LAFP Filter Cartridge Series Low Extractable

LAFP Filters are designed for the fine filtration of specialized semiconductor process gases. The PTFE membrane provides high retention efficiency. Low-extractable PP cage ensures the security of gas filtration.


Features and Benefits

Fine Filtration

PTFE membrane provides particles retention efficiency of 99.99%. Precise removal ratings of 0.003m are used in fine gas filtration.


High Flow Rates and Low Pressure Drop

PTFE membrane provides high removal ratings of 0.003m to meet stricter requirements.


Low-extractable

PP cage solves the problem of extracting and ensures the cleanliness of filtered gas.




  • Specification
  • Performance
  • Ordering Information


Operating Conditions


Filter MediumPTFE
CagePP
Removal Ratings0.003 μm
Max. Operating Temperature50°C
Max. Differential PressureForward 4.0 bar / 21°C
Reverse 0.34 bar / 21°C






Ordering Information

    End Cap Removal Ratings


LAFP

1/4 NPT= NPT Female0003=0.003μm
