Novacon High Precision Chemical Filter

High retention efficiency, flow rates and surface area allow for a rapid operation. High density membrane structure provides advanced 2nm retention.


Hydrophilic membrane makes it suitable for the filtration of DHF/ BOE/ DIW/ SC1/ SC2 <60°C


Highly asymmetric HAPES membrane structure provides higher flow rates and longer life time.

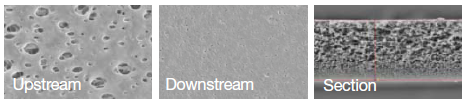

Nocacon Sem.png

Filter's cleanliness reduces equipment pre-operation time.


Low metal extractables.


All fluorine construction, one-piece structural design makes it easy to install and replace this filter capsule.




  • Specification
  • Performance
  • Ordering Information


Operating Conditions

Filter MediumHigh Asymmetric HAPES
Core/End CapsHDPE
CagePFA
Max. Operating Temperature65°C
Max. Operating Pressure

Cartrige                   Capsule

0.34MPa@25°C       0.58MPa@25°C
